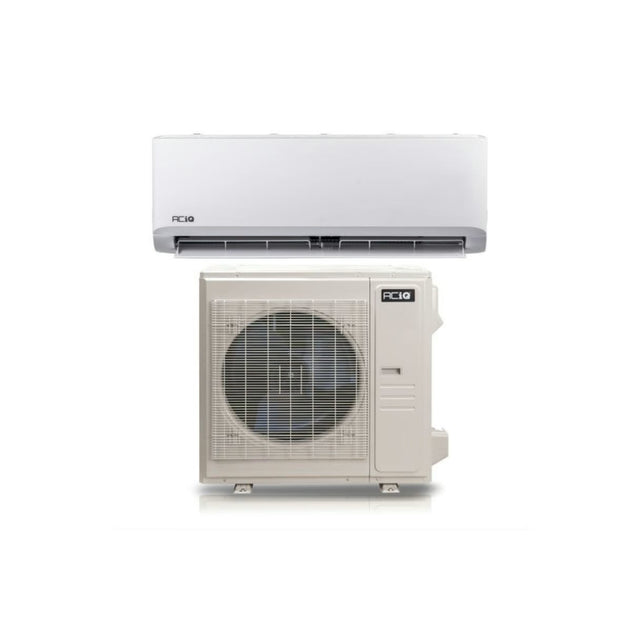

ACiQ 36,000 BTU 18 SEER Single-Zone Mini-Split System w/ Wi-Fi – Wall-Mounted Handler & Outdoor Condenser | R410A

ACiQ SC-36ZGLD-HP230B 36,000 BTU Outdoor Condenser Unit

Important: This outdoor unit must be paired with compatible indoor units to function (sold separately).

Key Specifications

• Cooling Capacity: 33,600 BTU/h
• Heating Capacity: 34,600 BTU/h
• SEER: 18
• EER: 8.2
• HSPF: 9
• Refrigerant: R-410A
• Voltage: 208/230V, 1 Phase, 60 Hz
• Compressor Type: Rotary
• Maximum CFM: 412–736 CFM
• Decibel Level: 65 dBA
• Liquid Line: 1/4"
• Suction Line: 5/8"
• Drain Line: 5/8"
• Max Breaker Size: 40 Amps
• Min Breaker Size: 24 Amps
• Line Set Length: 10–98 feet
• Outdoor Temperature Range (Cooling): 0°F – 115°F
• Outdoor Temperature Range (Heating): -22°F – 75°F
• Dimensions (H × W × D): 31.1" × 38.6" × 15.2"
• Weight: 172 lbs
• Compatible Indoor Units: ACiQ SC-36WGLD-HP230B and other ACiQ single-zone units

Features & Benefits

• Inverter Technology for energy-efficient and consistent performance
• Low Ambient Heating for reliable operation in cold climates
• Durable Construction with acrylic resin fin coating for environmental protection
• Quiet Operation for near-silent comfort
• Wi-Fi Compatibility for remote control and monitoring
