ACIQ  |  SKU: ACIQ-24W-HH-MD

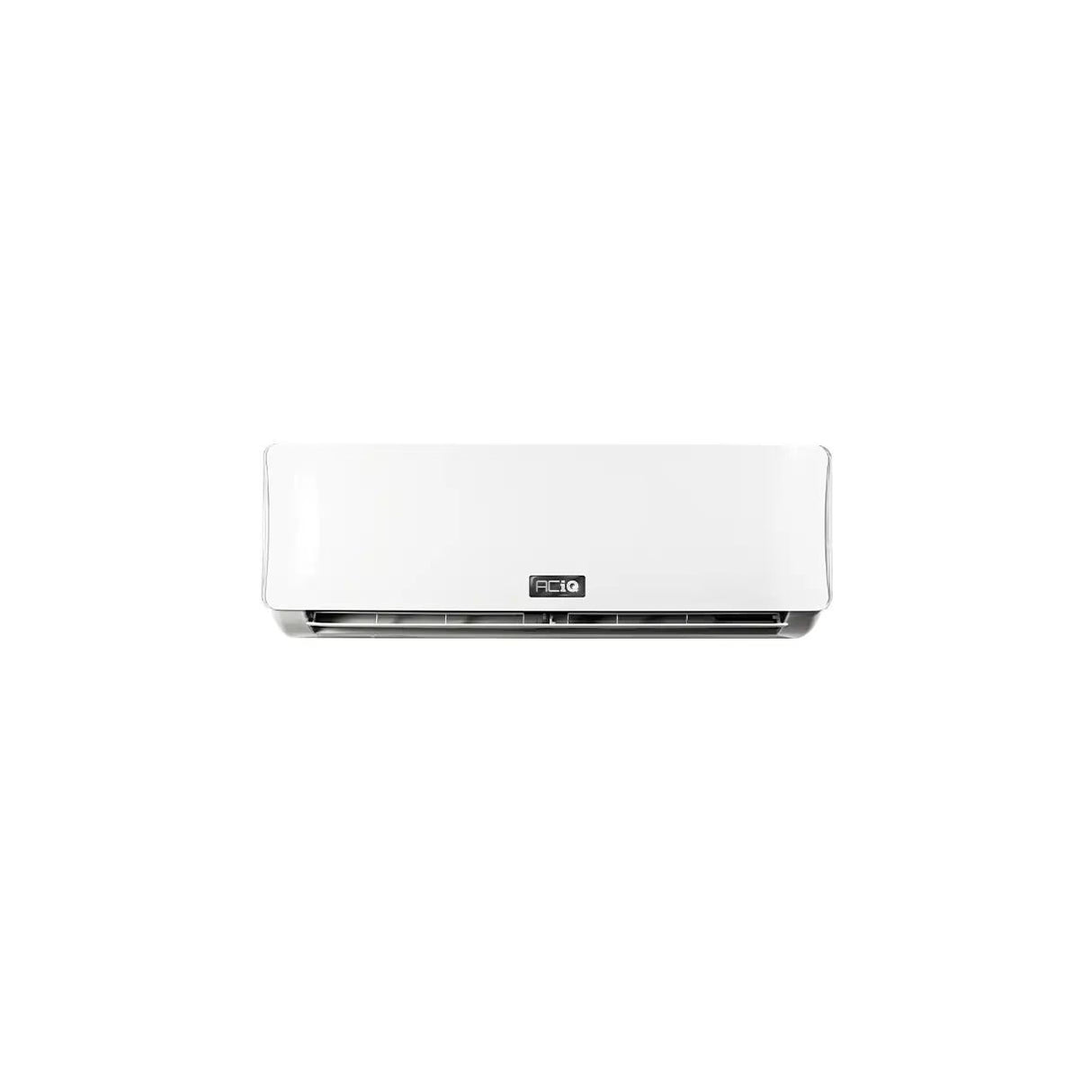

24,000 BTU ACiQ Platinum Wall Mount Mini Split Air Handler - R454B | 230V

$1,609.99 $1,859.99
Shipping calculated at checkout.


Platinum Performance

ACiQ Platinum air handlers can be used with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.

Features

  • 24,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

Intelligent Heating and Cooling

The ACiQ-09W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

24,000 BTU ACiQ Platinum Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V
SKU ACIQ-24W-HH-MD
Weight 39.680000
Manufacturer ACiQ
Product Features WiFi
Cooling BTU 24,000 BTU
Heating BTU 24,000 BTU
Maximum CFM Up to 812.3 CFM
Decibel Level (dBA) As low as 16.0 Decibels
Electric Heat Heat Pump
Refrigerant R454B
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V, 1 Phase, 60 Hz
Electric Phase Filter Single Phase
BTU/Tonnage 24,000 BTU/2 Ton
Mini Split Type Wall Mounted
Zone Compatibility Multi Zone, Single Zone
Height 14.59"
Width 46.85"
Depth 11.20"
Warranty 7 Years Parts with Online Registration
Safety Information PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
