ACIQ  |  SKU: ACIQ-24W-HH-MD / ACiQ-24ZPL-HP230C

24,000 BTU 21.5 SEER ACiQ Extreme Series Single Zone Wall Mount Mini Split System - WiFi Enabled - R454B

$3,719.99 $4,169.99
Shipping calculated at checkout.


24,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

Overview

The ACiQ Extreme series showcases Extreme Heat - hyper heat technology, providing continuous heating capabilities down to -22 degrees outside. Achieve optimal efficiency for both cooling and heating your space with its high SEER2 and high HSPF ratings.

Quick Facts

  • Delivers maximum performance at an affordable cost
  • Perfectly suited for spaces of approximately 1,000 - 1,500 square feet (varies depending on climate)
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Equipped with a gold fin condenser and full-protection coating
  • Operates quietly even under heavy workloads

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

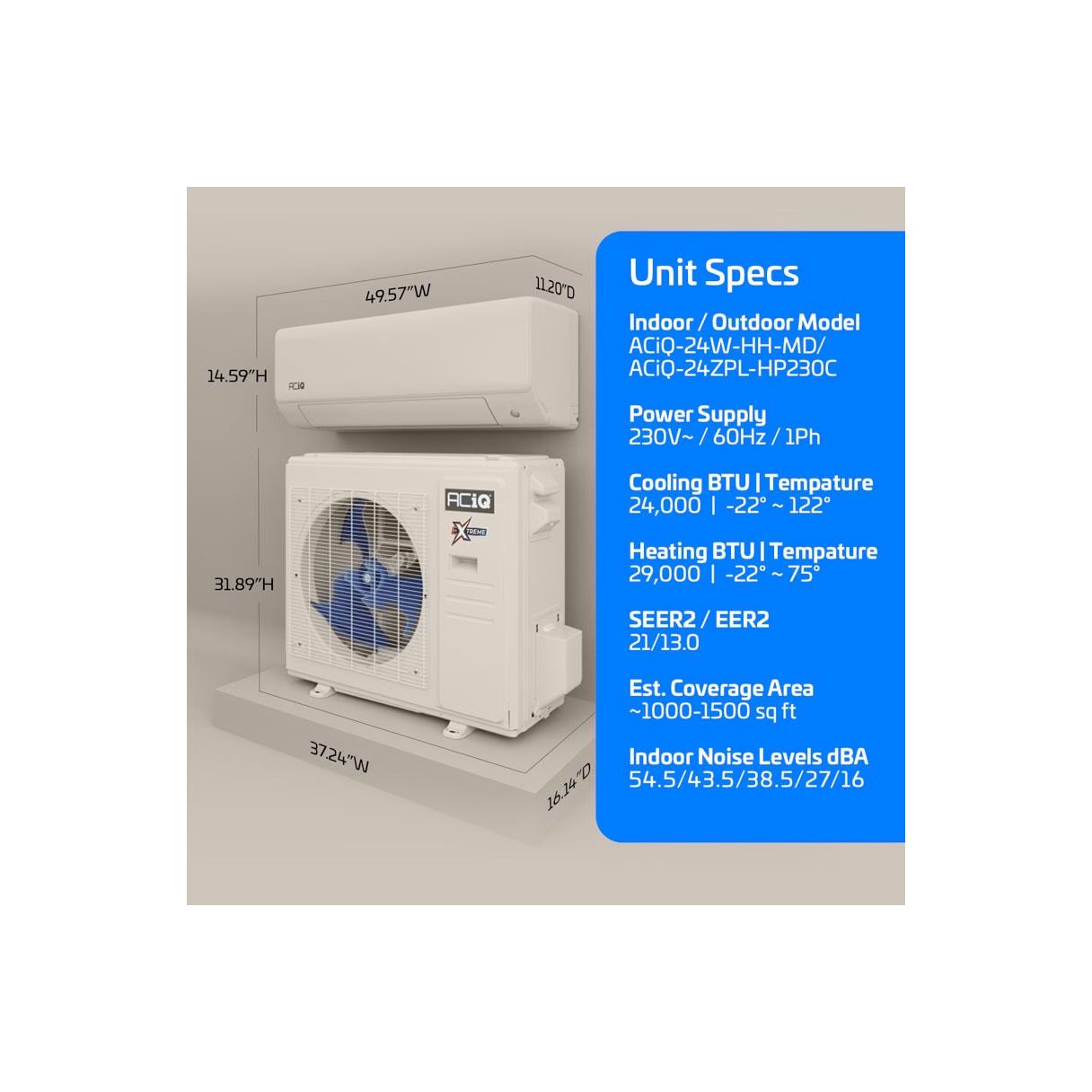

24,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

SKU ACIQ-24ZPL-HP230C
Weight 141.310000
AHRI Certificate Number 207825544
Manufacturer ACiQ
Product Features Low Ambient Heating
HSPF2 13.5
Cooling BTU 24,000 BTU
Heating BTU 29,000 BTU
Decibel Level (dBA) 61.5
Electric Heat Heat Pump
Energy Star Yes
Refrigerant R454B
SEER2 21
Electrical 208/230V | 1 Phase | 60 Hz
Max Breaker Size 35A
Min. Breaker Size 25A
Tonnage 2 Ton
BTU/Tonnage 24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating -22~75 F / -30~24 C
Min/Max Outdoor Temp for Cooling -22~122 F / -30~50 C
Zone Compatibility Single Zone
Operating Mode Heating/Cooling
Certification Energy Star, NEEP, UL AHRI
Height 31.89"
Width 37.24"
Depth 16.14"
Warranty 12 year compressor, 7 year parts with online registration
Safety Information PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
