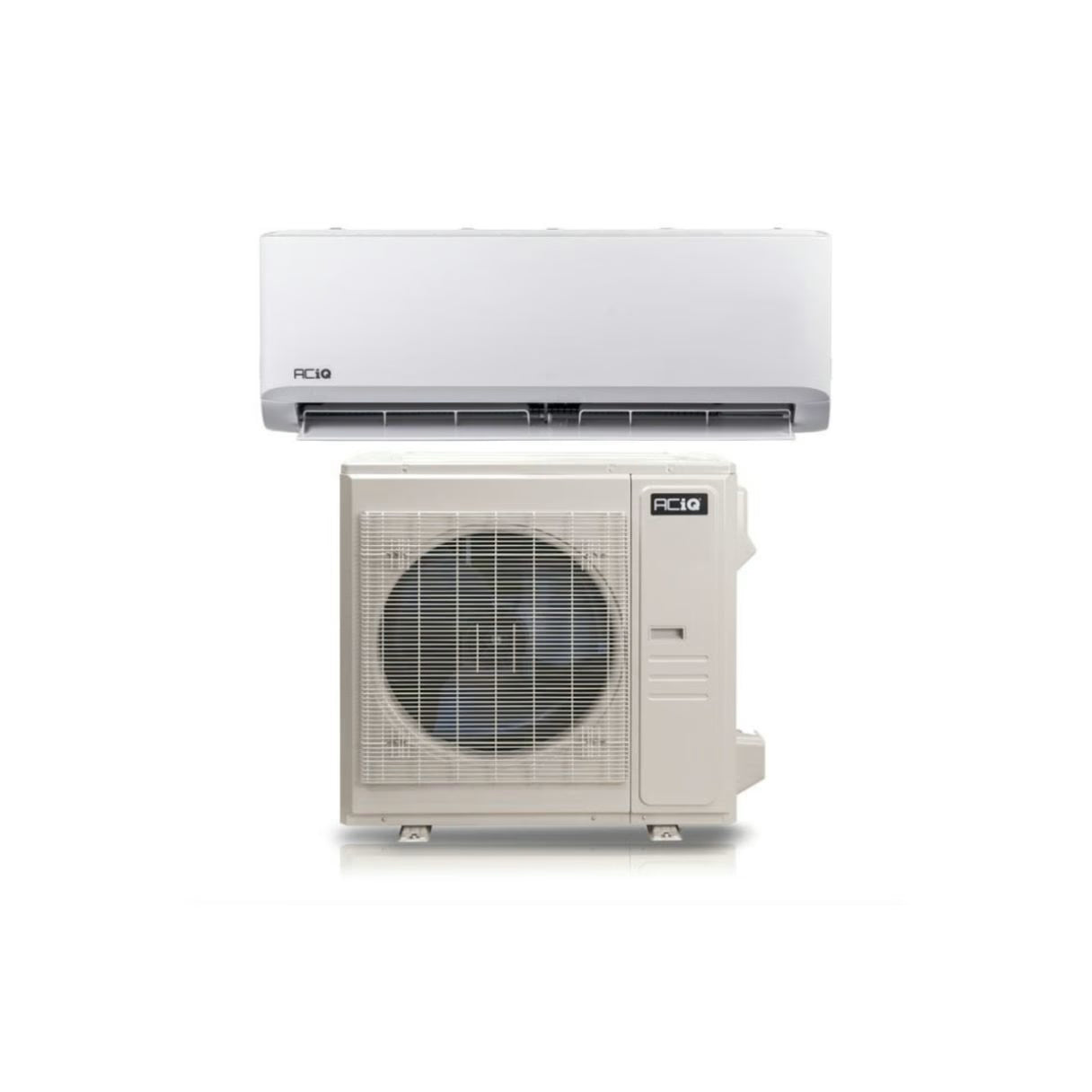

ACiQ 36,000 BTU 18 SEER Single-Zone Mini-Split System w/ Wi-Fi – Wall-Mounted Handler & Outdoor Condenser | R410A
$3,369.99
$3,779.99
Unit price
/
Unavailable
Shipping calculated at checkout.
ACiQ 36,000 BTU 18 SEER Single-Zone Mini-Split System w/ Wi-Fi – Wall-Mounted Handler & Outdoor Condenser | R410A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
36,000 BTU 18 SEER ACiQ Single-Zone Mini Split Outdoor Unit – R410A
ACiQ SC-36ZGLD-HP230B 36,000 BTU Outdoor Condenser Unit
Important: This outdoor unit must be paired with compatible indoor units to function (sold separately).
Key Specifications
- Cooling Capacity: 33,600 BTU/h
- Heating Capacity: 34,600 BTU/h
- SEER: 18
- EER: 8.2
- HSPF: 9
- Refrigerant: R-410A
- Voltage: 208/230V, 1 Phase, 60 Hz
- Compressor Type: Rotary
- Maximum CFM: 412–736 CFM
- Decibel Level: 65 dBA
- Liquid Line: 1/4"
- Suction Line: 5/8"
- Drain Line: 5/8"
- Max Breaker Size: 40 Amps
- Min Breaker Size: 24 Amps
- Line Set Length: 10–98 feet
- Outdoor Temperature Range (Cooling): 0°F – 115°F
- Outdoor Temperature Range (Heating): -22°F – 75°F
- Dimensions (H × W × D): 31.1" × 38.6" × 15.2"
- Weight: 172 lbs
- Compatible Indoor Units: ACiQ SC-36WGLD-HP230B and other ACiQ single-zone units
Features & Benefits
- Inverter Technology for energy-efficient and consistent performance
- Low Ambient Heating for reliable operation in cold climates
- Durable Construction with acrylic resin fin coating for environmental protection
- Quiet Operation for near-silent comfort
- Wi-Fi Compatibility for remote control and monitoring
